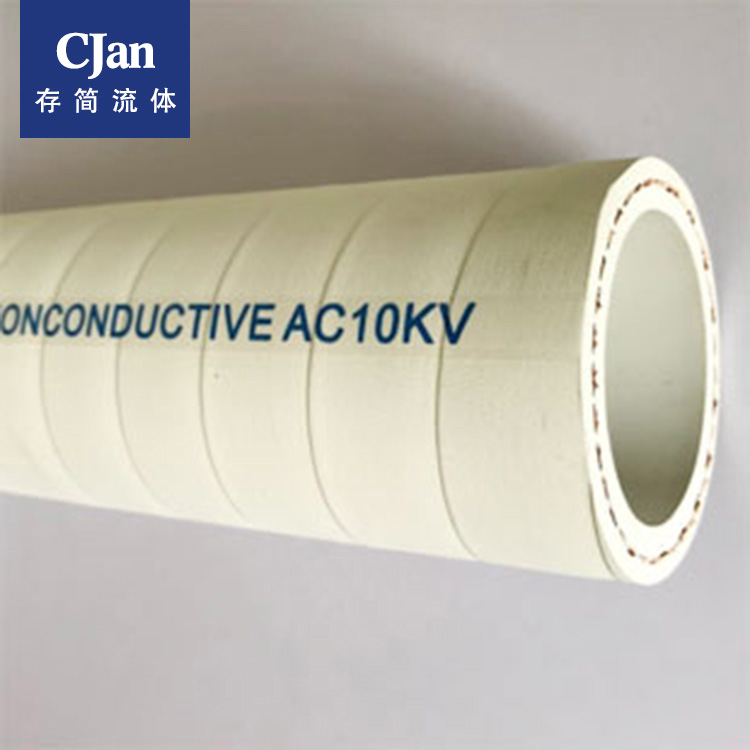

中頻感應電爐專用軟管 還原電爐絕緣軟管 JY10
Applications:
it is suitable for conveying purified water through cable in induction electric furnace water cooling system with voltage of 10KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.
Construction:
Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.
Reinforcement: high strength polyester fiber.
Cover: white or green, pure carbon - free, high - insulation EPDM synthetic rubber. Smooth for ID≤1", fabric impression for ID＞1”.
Electrical resistance: high insulation, excellent low leakage current. At 10KV DC/AC voltage, the leakage current is less than 20 Micro Amp.
Temperature range: -40 °C +120 °C
Environmental standards: EU pahs-2, REACH, ROHS directive.
Technical standard: HG/T2184, CJAN
應用范圍：
適用于電壓10KV內感應電爐水冷系統穿電纜輸送純凈水。純凈無碳，高絕緣，耐磨、抗老
化。
軟管結構：
內管：白色，光滑、純凈、無碳、高絕緣的EPDM合成橡膠。
增強層: 高強度聚酯纖維線。
外管：白色，光面（1"以上為布面）純凈無碳、高絕緣EPDM合成橡膠；其他綠色/紅色/藍色可根據客戶要求定制。
耐電壓：
高絕緣，優秀的低泄露電流。在10KV DC/AC電壓下，泄露電流小于20 Micro Amp。
適用溫度：-40 to 120 ℃。
環保標準：符合歐盟PAHS-2、REACH、ROHS指令。
技術標準：HG/T2184, CJAN
編碼
|
內徑
|
外徑
|
彎曲半徑
|
工作壓力
|
爆破壓力
|
重量
|
每卷長度
|
inch
|
mm
|
mm
|
mm
|
PSI
|
PSI
|
kg/m
|
m
|
JY10013
|
1/2"
|
12.7
|
22.0
|
100
|
300
|
1200
|
0.31
|
100
|
JY10016
|
5/8"
|
15.9
|
25.0
|
120
|
300
|
1200
|
0.35
|
60
|
JY10019
|
3/4"
|
19.0
|
29.0
|
150
|
300
|
1200
|
0.46
|
60
|
JY10022
|
7/8"
|
22.2
|
33.0
|
170
|
300
|
1200
|
0.58
|
60
|
JY10025
|
1"
|
25.4
|
38.0
|
200
|
300
|
1200
|
0.76
|
60
|
JY10032
|
1-1/4"
|
31.8
|
50.0
|
250
|
250
|
1000
|
1.1
|
40
|
JY10038
|
1-1/2"
|
38.1
|
56.0
|
300
|
250
|
1000
|
1.38
|
40
|
JY10042
|
42mm
|
42.0
|
60.0
|
336
|
250
|
1000
|
1.46
|
40
|
JY10045
|
45mm
|
44.5
|
62.5
|
360
|
250
|
1000
|
1.6
|
40
|
JY10050
|
2"
|
50.8
|
68.8
|
400
|
250
|
1000
|
1.9
|
40
|
JY10063
|
2-1/2"
|
63.5
|
81.5
|
500
|
200
|
800
|
2.5
|
40
|
JY10076
|
3"
|
76.2
|
94.2
|
600
|
150
|
600
|
3.2
|
40
|
